Mitre Plates

A mitre plate is a type of pre-formed metal connector or bracket designed primarily to reinforce and strengthen a 45 degree mitre joint, which is an inherently weak joint in construction and woodworking.

Uses in Structural Construction

In building and roofing, mitre plates are highly engineered steel connectors.

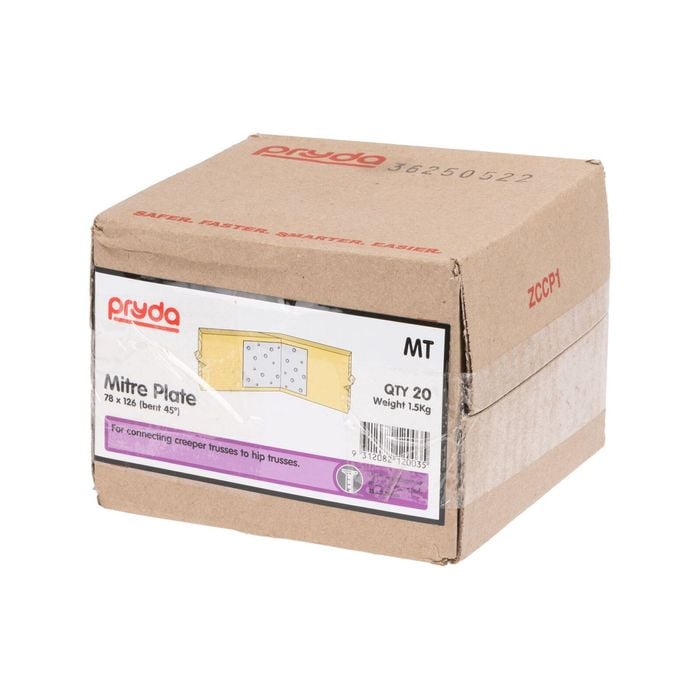

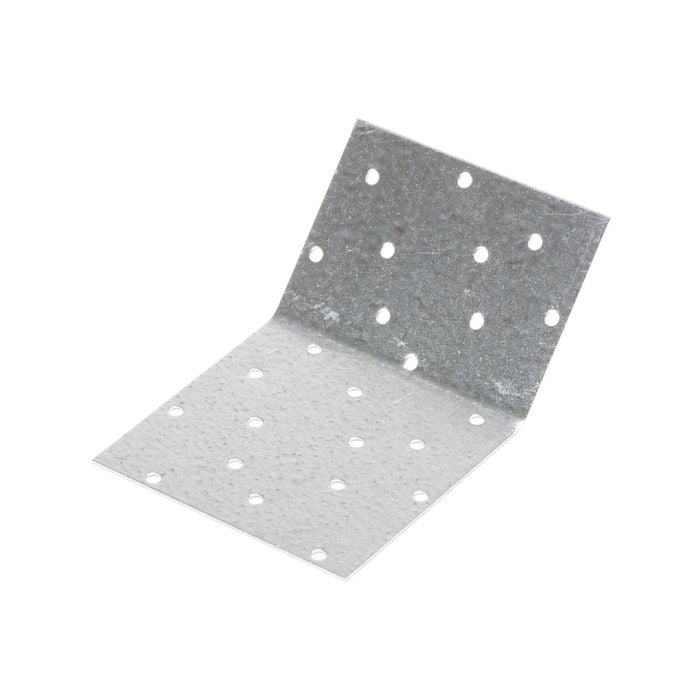

• Primary Application: They are most commonly used to secure the connection between creeper trusses (or jack trusses) and the hip truss in a hip-end roof frame. This joint is where the plate fits snugly.
• Material and Design: They are made from formed, pre-punched galvanised steel to resist corrosion and provide high structural capacity against wind uplift and vertical loads.

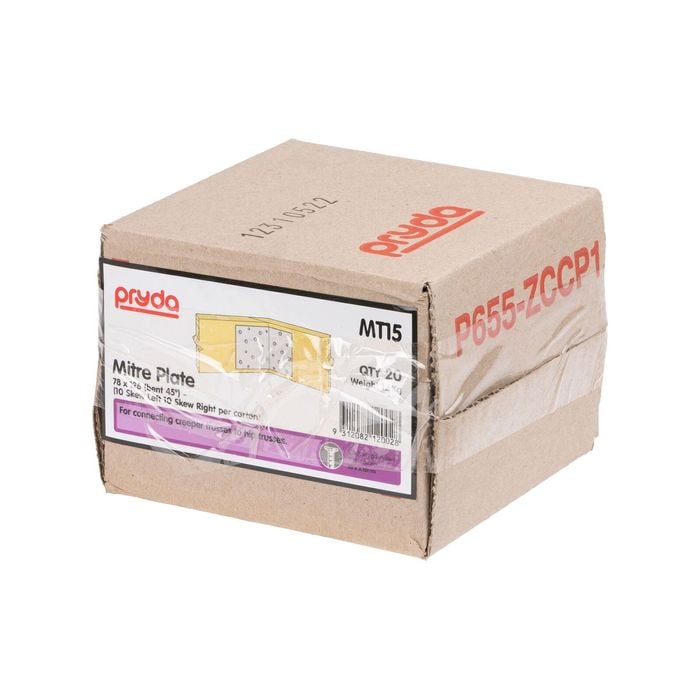

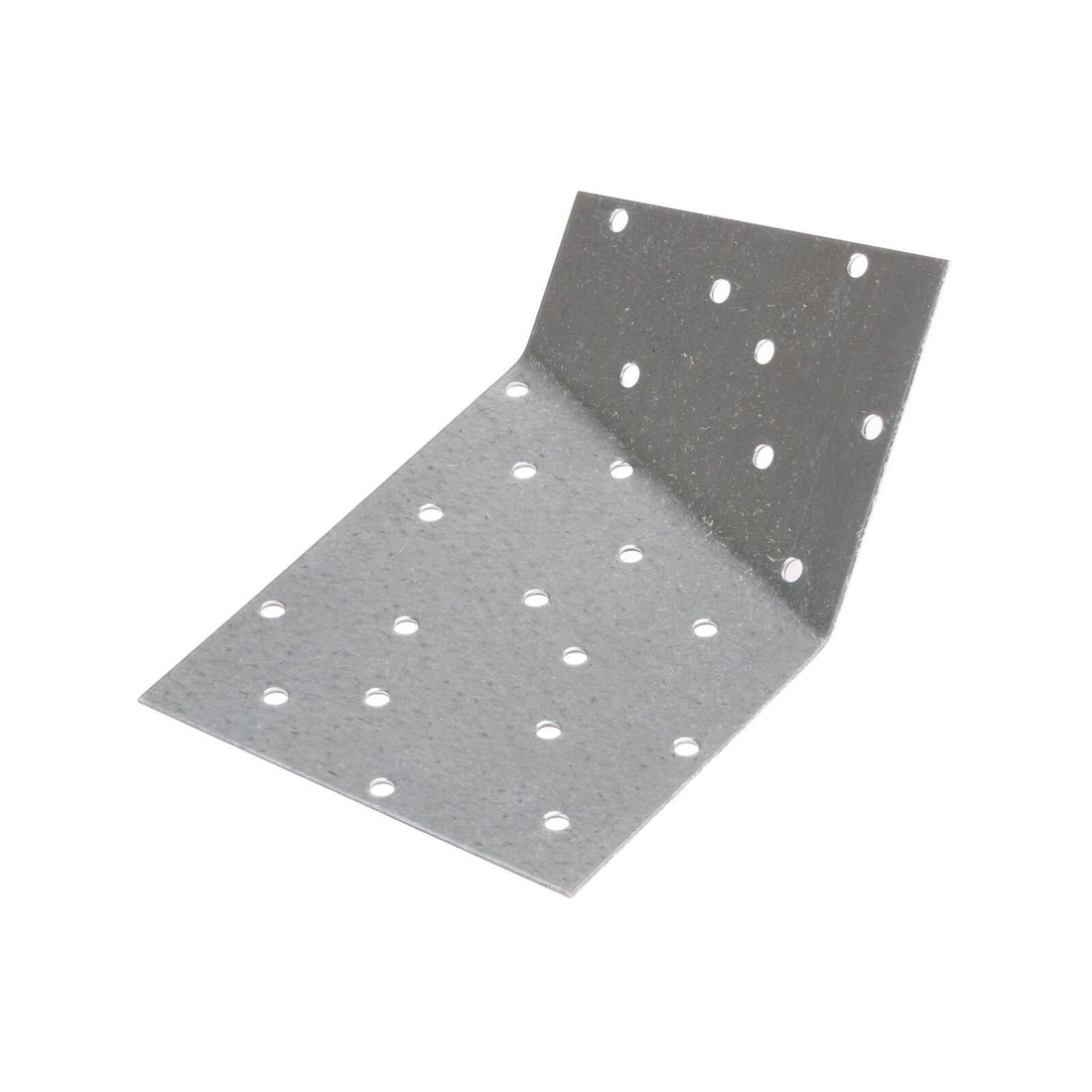

• Functionality: They are often factory-bent to the precise angle and are available in left-hand and right-hand versions (like the Pryda MT15 set) to ensure the creeper truss is secured from both sides of the hip truss. The plates are fixed using nails through pre-drilled holes.

Uses in Woodworking and Framing

In smaller-scale projects like picture framing, "mitre plate" can refer to two different items:

1. Reinforcement Plates: Small, flat metal brackets applied to the back of a finished picture frame to provide extra mechanical strength to the corner joint (formed by two 45 degree wood cuts). These complement the adhesive or V-nails holding the frame together.
2. Clamping Tools: The term is sometimes used to describe a specialized component of a clamping jig or a corner clamp used to hold the two mitered pieces perfectly square(90 degree) while the glue is setting. These tools ensure a clean, gap-free joint face.
